2008-Present (AXYS ALSO) POLARIS 800 CFI 12HP or 20HP "Drop In" Piston/Head Kit 2 DIFFERENT KITS TO CHOOSE FROM.

BOTH ADDING PERFORMANCE AND RELIABILITY TO YOUR ENGINE!

_____________________________________________________________________

DYNO REPORT on REV 2 Kit- (2014 800)-> REV 2 DYNO Report.pdf {clicky}

NOTE: The REV 2 kit was designed to give near 100% full lower skirt support for the piston. This lack of lower skirt support is a major contributor to why the stock pistons FAIL!

This piston is designed UNLIKE any other piston out there!

ALL other kits out there REMOVE lower skirt support by shimming the cylinder up.

 This kit ADDS lower skirt support!

_____________________________________________________________________

Please Subscribe to Dynotechresearch.com for the latest in Performance Testing

______________________________________________________________________________

This kit WILL outperform ANY other "Bolt On" product you can buy for this engine!

___________________________________________________________________________

The piston we use is VERY CUSTOM! We have been designing our own pistons since 2005.

This piston WILL address all the issues associated with the OEM Piston!

The piston is custom designed with different ring location and oil feed holes.

These are the BEST pistons you can buy!!

_______________________________________________________________________________

After MANY tear-down and inspections, these kits have PROVEN to be solid and, more importantly, to fix the issues that are associated with running the OEM piston.

 Serious HP (12HP (Rev-1 Kit)  (20HP Rev-2 Kit) is realized and the reliability IMPROVED for a very small cost!

NOTE: The AXYS (HO engine) is more difficult to add HP. The REV 1 kit closer to 9HP and the REV 2 can get 16-18HP BUT will require an aftermarket pipe.

No "gimmicks" that claim to address the issues but really do nothing.

You can NOT get this kind of power AND address an internal engine problem anywhere else for this low of price!

_________________________________________________________________________

Please be aware of "CLAIMS" that the OEM cylinders are over-sized from the factory!! This is simply a sales "gimmick". We have measured 100's of these cylinders and NONE of them have been out of spec!

 It would have required a HUGE final bore machining/boring error for this to happen... again, this is a clever gimmick to try and sale you something!

There is NO problem with the sizing of the cylinders. There IS a problem with the pistons .

Please see below to learn more about our solution!

The REAL "HELP" will come in the form of 2 Custom Pistons and a Custom Head that will completely transform your engine into what it should have been from the Factory!

With our custom piston geometry, the porting is altered resulting in huge HP and Torque gains!

Piston side loading is reduced due to our unique piston's weight. Yes, this piston is lighter than the OEM piston and having a lighter piston will reduce piston side load pressures AND reduce the stress on the crank!

Also find that annoying vibration is gone with these pistons..

You know how the PRO likes to "shake" at low idle?

We find that the OEM Polaris Piston will NOT hold its form after a very short time of running. We have found it common to see the piston to cylinder wall clearance DOUBLE in less than 1000 miles.. THIS is the #1 reason behind these cylinder failures associated with the Polaris Engine!!

IT IS NOT due to a rod ratio error! It is SOLELY related to excessive piston to cylinder wall clearance!

The RK Tek Pistons address this issue 100%!

NOTE: This is VERY important...These pistons have a VERY unique design criteria.

You do NOT have to treat these pistons any different (in any way, shape or form) than your stock piston!

They require ZERO added "treatment"!

 They will NOT fail unless they are subjected to a low fuel or high heat condition! These pistons are the BEST piston available on the market today! BAR  NONE!

BEST PART: NO AFTERMARKET PIPE is needed! We, purposely, designed these kits to perform using the stock exhaust components!

Once you have the kit installed.. YOU ARE DONE!!

We have been doing these "Drop In" Kits for over 14 years on the Ski Doo  and now we are applying our "expertise" to the "lacking"  800 CFI Power-Plant.

There is NO DOUBT that this mod is the best mod for the money you can do.

Reliability is NOT compromised in any way, shape, or form and the cost is VERY affordable.

_____________________________________________________________________________

NO FUEL Controller required!! (on 2011-2012 800 CFI Engines (Rev 1 Kit only)

 Fuel controller required on the 2013-Newer and ALL REV-2 Drop In Kits )

These Kits work EXCELLENT on the CFI-4 engines but they ALL will require a fuel controller

________________________________________________________________________________________________________________________________

In fact, we designed this kit to run on the oxygenated fuel (Ethanol) and still use the NON-ETHANOL factory resistor!! So, it extremely safe on bad gas! How great is that?

____________________________________________________________________________

If you are looking to take it to the next level...Look for the 25+HP 858 Big Bore Kit

Cost for the 12HP REV-1 Drop in Kit (See Below)

Cost is $845.00 and will include the following:

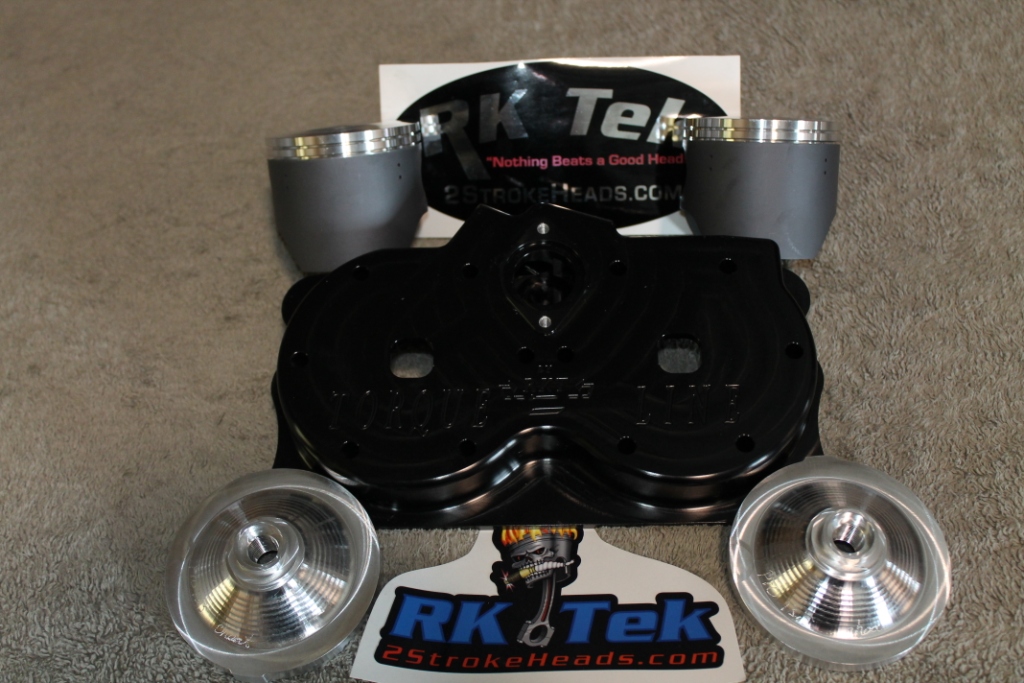

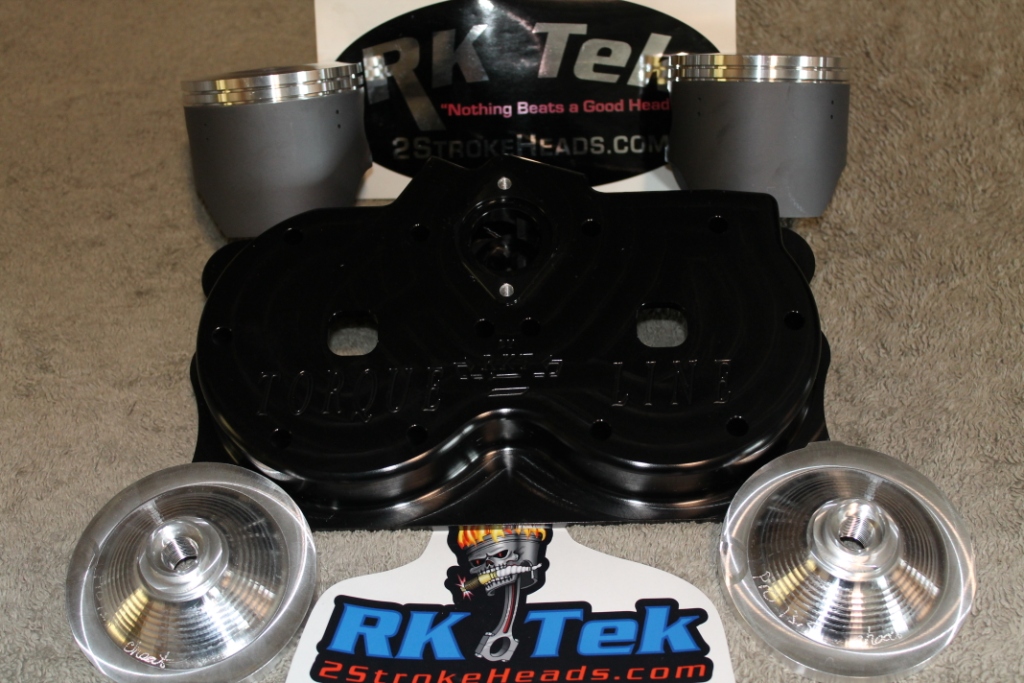

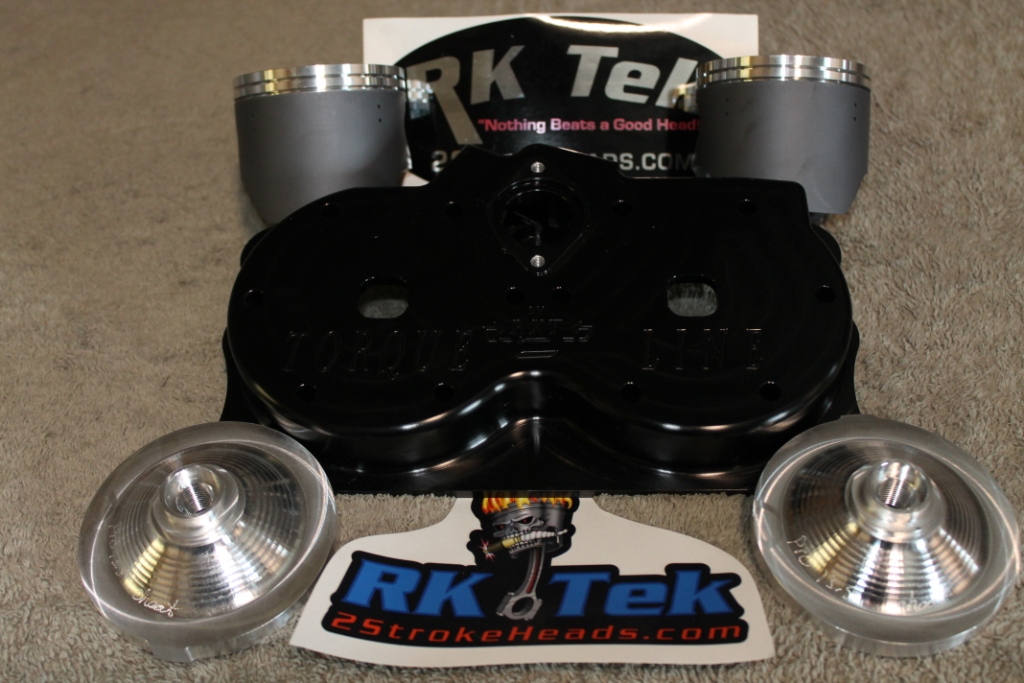

2ea) RK Tek Custom, Snowmobile Specific Pistons and Rings

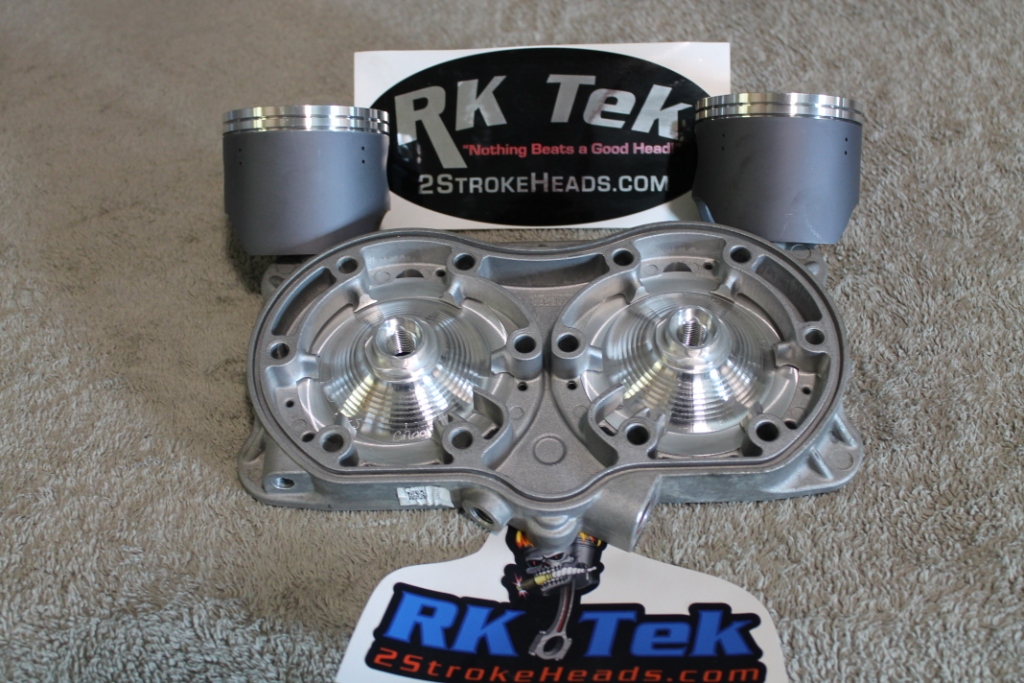

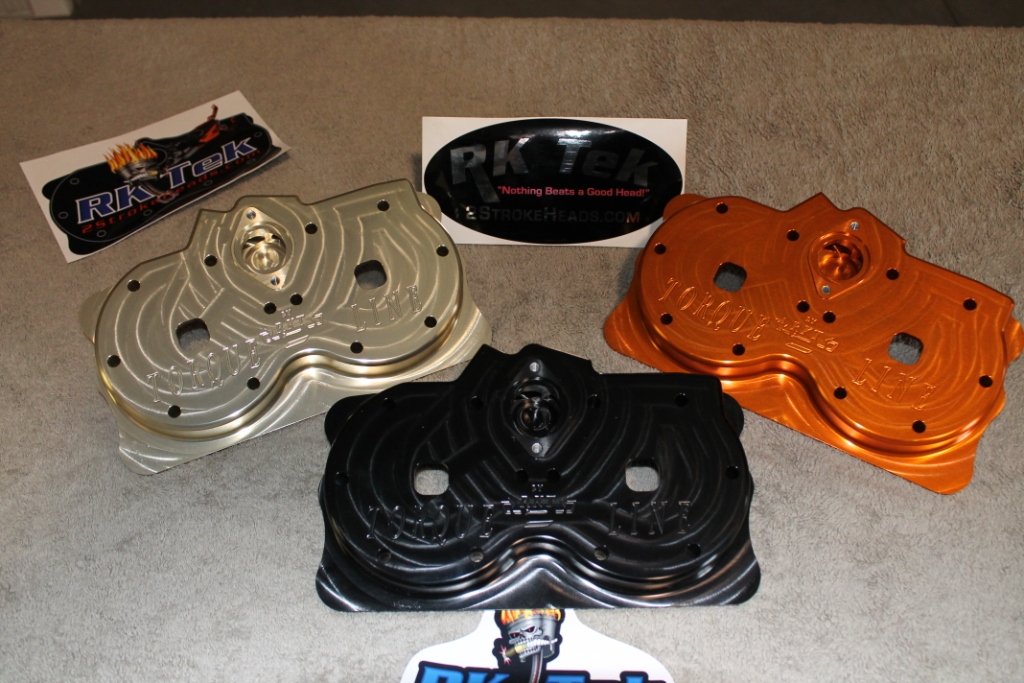

1ea) RK Tek Custom Billet Head with our PATENTED Combustion Chamber design OR our Industry 1st OEM Cheater Head ($100 LESS)

1ea) Base gasket

____________________________________________________________________________

Cost for the 20HP REV-2 Drop in Kit (See Below)

Cost is $945.00 and will include the following:

2ea) RK Tek Custom, Snowmobile Specific Pistons and Rings

1ea) RK Tek Custom Billet Head with our PATENTED Combustion Chamber design OR our Industry 1st OEM Cheater Head ($100 LESS)

2ea) Base gasket

________________________________________________________________________

NOTE:  This REV 2 kit WILL require a fuel controller (Boondocker  OR Power Commander) AND will require aftermarket reeds (Boyesen or Vforce) AT any elevation BELOW 3500ft. Above 3500Ft. stock reeds work fine but the aftermarket reed systems will work better!

The REV 2 Drop In Kit was dyno'd on 2 different engines (before and after) at Dyno Tech Research in 2014 and 2015 and showed a max power gain of 21HP with the STOCK Exhaust System and 91 octane PUMP GAS!

These reports are posted for all Dyno Tech Subscribers to view.

THIS KIT IS THE REAL DEAL!!!! NO GIMMICKS HERE!

Call anytime to hear more about this great upgrade

Check out what one customer (who is actually a Polaris Mechanic/Service Manager) had to say after an install

"Hey Kelsey. Put my drop in kit in today, nice stuff. On this sled also all the annoying vibrations and 3000rpm death-shake are gone. Smooth. The stock pistons were 3 grams different in weight. The RK Tek Pistons were a full 27 grams lighter and exactly the same weight to the gram. The old setup when idling the coolant temp would gradually climb of course and continue to climb without hesitation. Your head cools so efficiently that i never could get the temp over 133F it would just sit there. Even when brought up to 4500-5500 rpm the temp would slowly climb to 140F. What an amazing difference. Can't wait for good snow now. Turned the oil pump up one full turn and running 91 octane on the non eth resistor. 1/2 litre of semi synth oil in full tank fresh fuel. Anything else you think i should know bud shoot me a pm when you get a chance, i know your flat out. Have a good one man.
Thank you,"

AND another statement from a different Polaris Dealer Service Manager

have roughly 50 miles on my 2013 155 pro with kelsey's drop in kit with the higher compression head. I have "stacked" his set up with an slp pipe can power commander and my own clutching (not slp's set up). It is a noticeable difference. as far as track speed i do not know yet as we only have about 2 feet of snow right now. what i do know for fact is that with this set up running the slp stage 4 map which is def. on the rich side i was able to quite easilly beat a 2012 stage 4 slp pro 800 in a short drag race. not only that i am pulling 2 grams heavier weights than the same set up with out the drop in kit. and i'm pretty sure i'm going to have to add even more weight. the power band feels much SMOOTHER and it even gives the motor a lot crisper sound. I am sold on these kits so far after a little bit of experience around kelsey's product last year and this year. Lets just say that mine ran good enough not even broke in that i have already sold 7 more of kelseys drop in kits. Eric Woog (owner of VOHK) is also running these kits and he def. knows what he is doing when it comes to making power on sleds.
